Use this procedure to modify a wall intersection by removing a vertex from a component.
Vertex and Edge grips display for the first wall component, based upon the wall style index.
You can only remove vertices from one component at a time. Press Esc to clear component selection.
If you want to... | Then... |
---|---|
Discard any changes you made during the edit-in-place session | click ![]() ![]() ![]() |
Save any changes you made during the edit-in-place session | click ![]() ![]() ![]() |

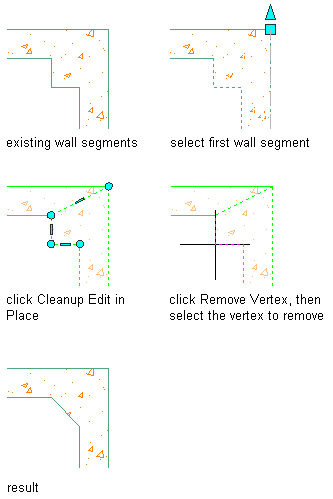

In the following example, a vertex is removed from a foundation wall corner to create a chamfered condition.
