To Attach Property Sets to Zones

Before exporting space data to gbXML, you must assign all spaces to a zone. You configure a zone for analysis by specifying the heating and cooling temperatures for the zone.

1. Create zones.
2. Select all zones.
3. On the Extended Data tab of the Properties palette, click (Add property sets).

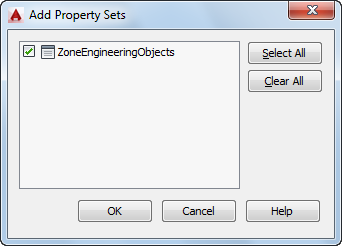

4. In the Add Property Sets dialog box, select ZoneEngineeringObjects, and click OK.

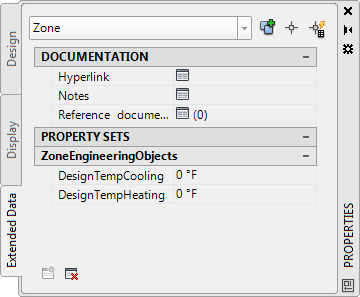

   The property set is added to the selected zone, and it can be viewed on the Extended Data tab.



5. Under Property Sets, specify the appropriate values for design heating and cooling temperatures.
