Removes objects from a drawing.
Access Methods
Button
Toolbar: Drafting tool set
Explode and Erase tool group Erase Menu:
Modify
Erase
Shortcut menu: Select the objects to erase, right-click in the drawing area, and click Erase.
Summary

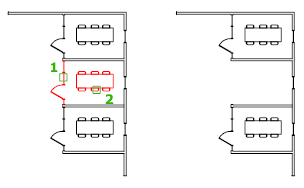

You can erase selected objects from the drawing. This method does not move objects to the Clipboard, where they can then be pasted to another location.
Instead of selecting objects to erase, you can enter an option, such as L to erase the last object drawn, p to erase the previous selection set, or ALL to erase all objects. You can also enter ? to get a list of all options.
