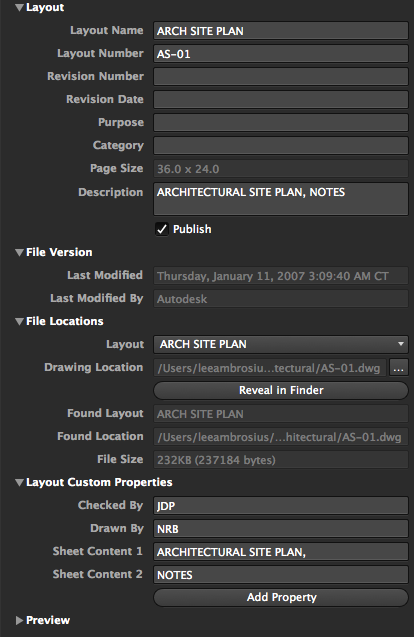

Displays information that is specific to the selected layout, such as the name, number, and whether it will be included in publishing operations. Also displays custom properties, if any.
List of Options
The following options are displayed.
Layout
Displays information used to identify the layout in the project.
- Layout Name
-
Displays the name of the layout in the project.
- Layout Number
-
Displays the number for the layout.
- Revision Number
-
Displays the revision number assigned to the layout.
- Revision Date
-
Displays the revision date for the layout.
- Purpose
-
Displays what the layout is used for.
- Category
-
Displays the name of the category the layout.
- Page Size
-
Displays the page size for the layout.
- Description
-
Displays the description for the layout.
- Publish
-
Controls whether the layout is added to the Batch Publish dialog box when publishing a group or all layouts in the project.
File Version
Lists information about the associated drawing (DWG) file.
- Last Modified
-
Displays the date when the file was last modified.
- Last Modified By
-
Displays the name of the user who made the last modification to the file.
File Locations
Displays the location of the drawing file that contains the project layout.
- Layout
-
Specifies which named layout in the drawing (DWG) file that should be associated with the layout in the project.
The drawing (DWG) file that contains the layout is specified in the Drawing Location property.
- Drawing Location
-
Specifies the path to and the drawing (DWG) file name where the layout was previously saved.
- Reveal in Finder
-
Opens Finder to the location of the drawing (DWG) file associated with the layout.
- Found Layout
-
Displays the name of the layout in the drawing (DWG) file associated with the layout in the project.
- Found Location
-
Displays the path and file name of the drawing where the layout was found.
- File Size
-
Displays the size of the drawing (DWG) file associated with the layout.
Layout Custom Properties
Displays the user-defined custom properties associated with each layout in the project.
You can manage user-defined custom properties by:
- Clicking Add Property to display the Add Custom Property dialog box and create a new property.
- Right-clicking over a property and choosing Remove Custom Property to remove the property.
You can also choose New Custom Property to display the Add Custom Property dialog box and create a new property.
Preview
Displays a preview image of the selected layout.
