Easily manage a panel schedule by exporting it to a Microsoft
Excel spreadsheet. After it is in Excel, you can modify, remove, and add tables, cells, and values.
Note: The panel schedule in AutoCAD MEP and the exported panel schedule, in Excel, are not linked, so changing a value in one location will not update the value in the other location.
To export a panel schedule to Excel
- Select the panel schedule you want to export, right-click, and click Export.
- In the Export Data dialog box, enter a filename and click Save.

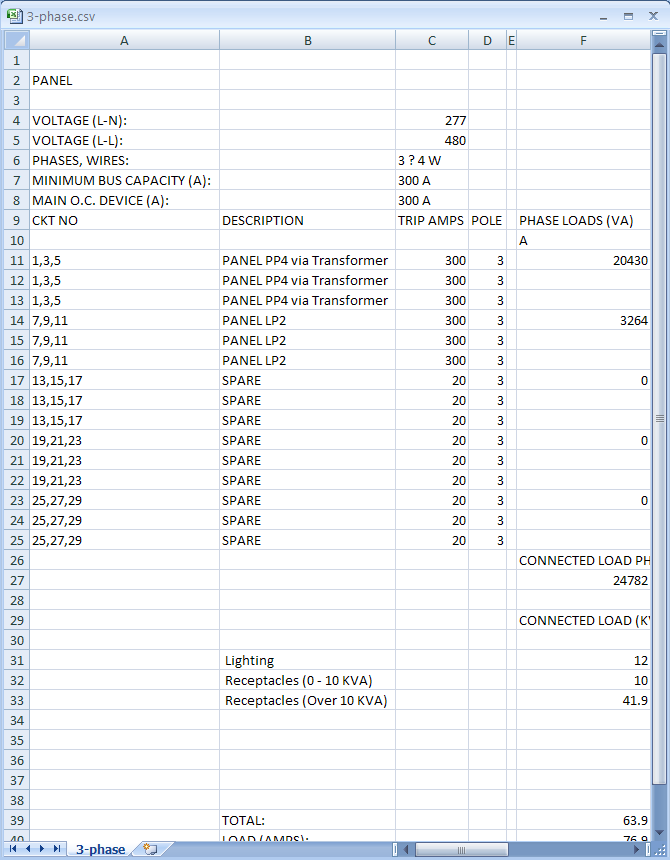

The exported panel schedule data is saved as a text file with a .csv file extension. Open the file in Excel and work with the data as needed.
