To Enter the Asset Builder Environment

Entering the Asset Builder Environment

1. Open the AutoCAD Factory layout that contains the block you wish to convert to an asset and publish.
2. On the Factory tab, in the Asset Builder panel, click Asset Builder .

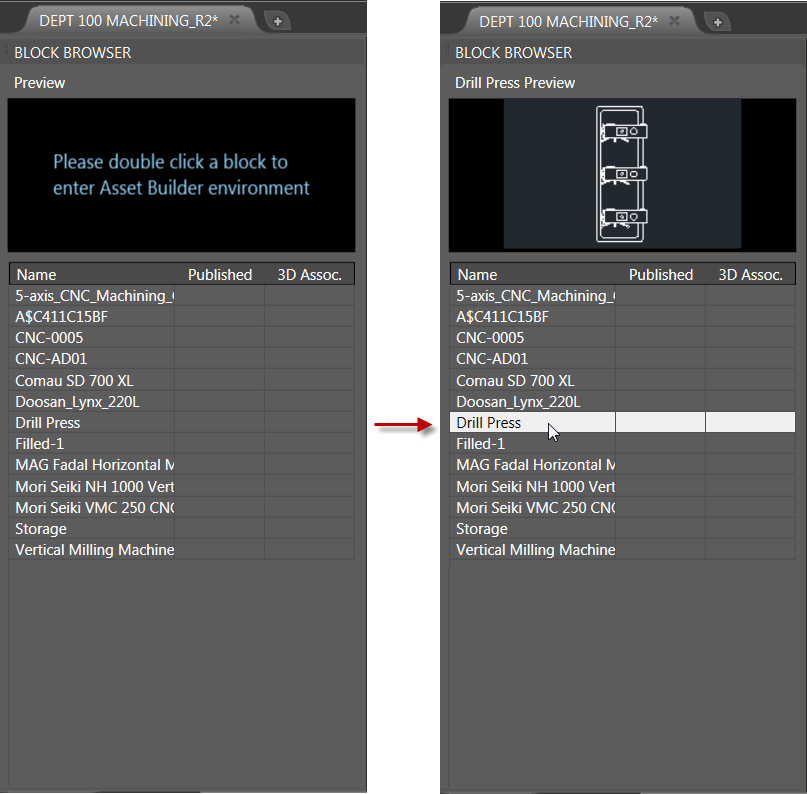

3. The Block Browser dialog box appears listing every block defined in the current drawing.





   Double-click on the block you wish to convert to an asset and publish. Doing so enters the Asset Builder environment and the selected block appears in the Block Browser preview window as shown in the image above. The block is also highlighted in the graphics window.

4. The AutoCAD Factory ribbon at the top of the graphics window is now replaced with the Asset Builder ribbon.
5. You can now assign asset properties for the selected block.
