OPUS Printing

It is possible to create a Printout of the part currently in Opus. This is not the same as Plotting in CAD and is purely a graphical printout of the Opus Screen. There are a number of ways to access Opus, these are listed below.

• Click the Opus icon on the Item Folder Toolbar. If the Opus icon is not visible, it may be necessary to enable it.
• Click Item Folders > View > Toolbars > Item Folder Toolbar.

Alternatively;

• Right-click in the folder contents window of any Item Folder, and click New > Empty Opus Part.

Or if already using Profiler;

• Click View > Opus.

Alternatively;

• Click File > New Job

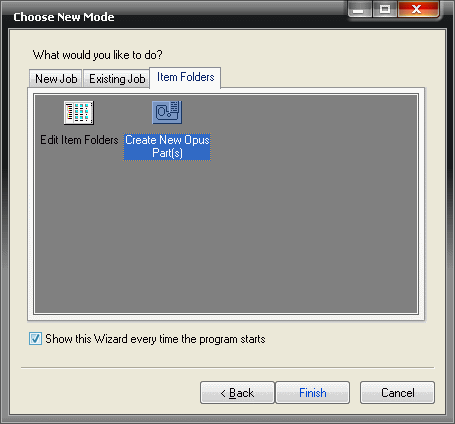

• In the Job Wizard, select the Item Folders tab and click the Create New Opus Part(s) and click Finish.



Print

• Open or create an Item in Opus.
• Click on the View > Print and select Layout.

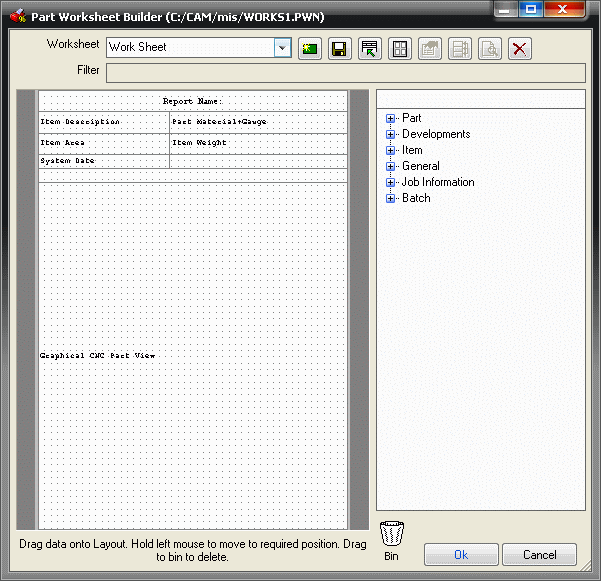

• Different Print styles can be created in Layout, which brings up a screen similar to the Worksheet Builder.

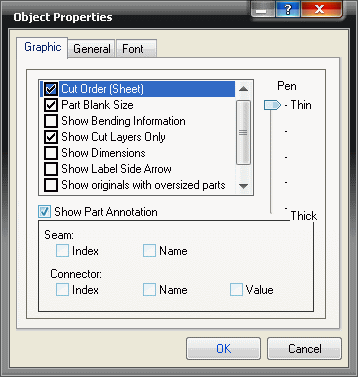

• Right Click in the Graphical CNC Part View and select Properties to bring up the Print Object Properties.



  Here you can select to Show Cut Layers Only or to display Dimensions and Annotation.

• Click OK.
• Click on View > Print and select either Current Part or All Part(s) if you have more than one Opus Item.

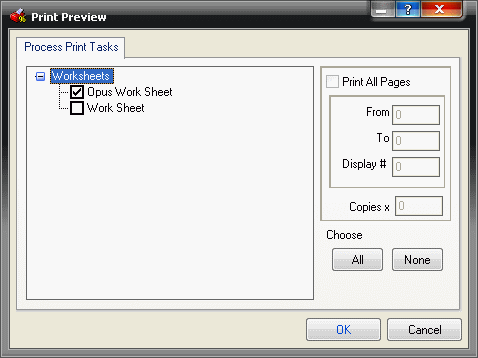

• The Print Preview dialogue will open which lets you select which Printout you need.



• Click OK

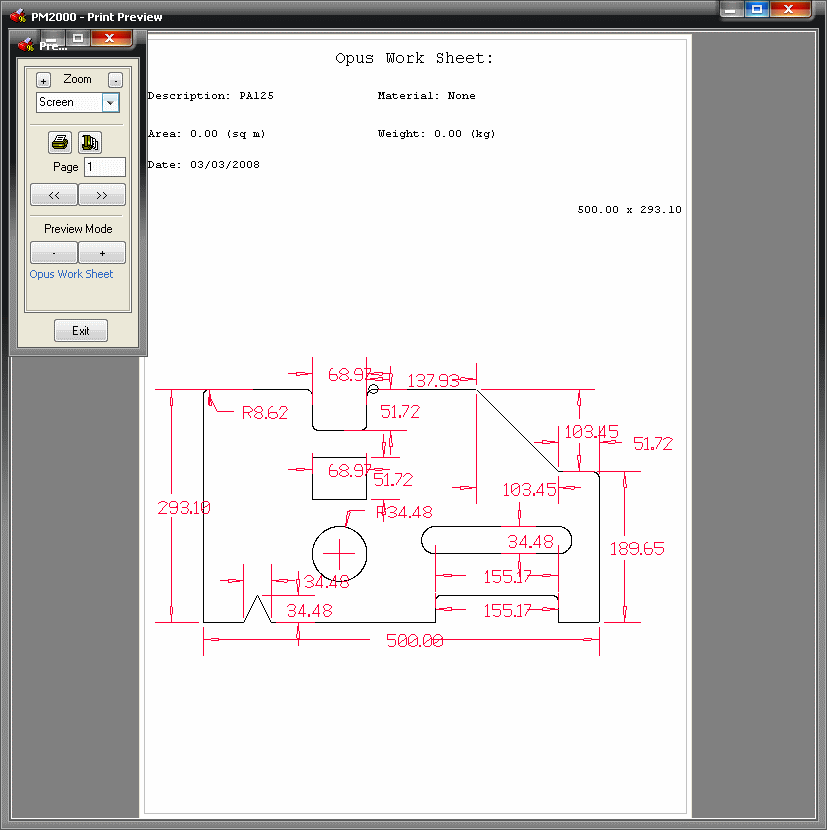

  A preview of the Print will be displayed.





• Click on the Print Icon to print the Page.
