The CADmep right click and shift - right click menus enable the user to access a number of most commonly used CADmep commands. Some of these commands can also be accessed using the CADmep_Toolbar.
AutoCAD Setup
The CADmep+ right mouse click menus assume the user has set the AutoCAD right-click menu to the following settings:-
Options User preferences Right-click Customization. CADmep Right Click Menus
The CADmep+ menus can be found by placing the cursor in the AutoCAD drawing (but not over any of the items etc. in the drawing) and right-clicking OR shift right-clicking the mouse.

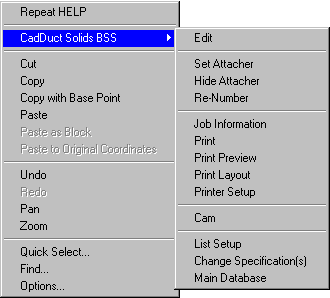

Right-click menu.
Click CadDuct Solids BSS

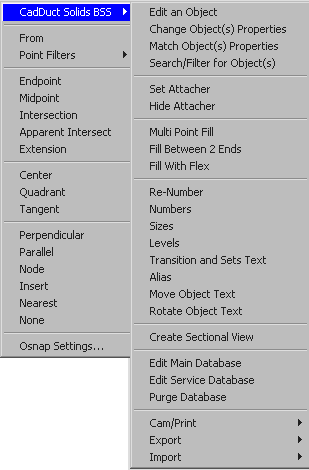

Shift right-click menu.
Click CadDuct Solids BSS
Tip: Lost the Shift right-click menu?..... Reload your MENU file, using the MENU command, then type TBAR to recreate the shift right click menu.

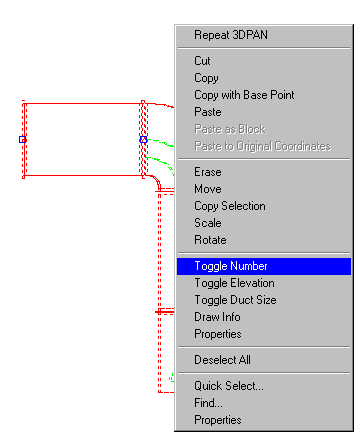

An additional menu is displayed on right-clicking when Grip Points are active:
To view a complete list of commands available with CADmep:
- From the AutoCAD Prompt Line, Type in ARX. Then type COMMANDS.
- All of the available Commands included with the CADmep Application will be listed.
- Press Enter to see the rest of the list.
- See CADmep Commands for an outline explanation of the complete list of CADmep commands.
