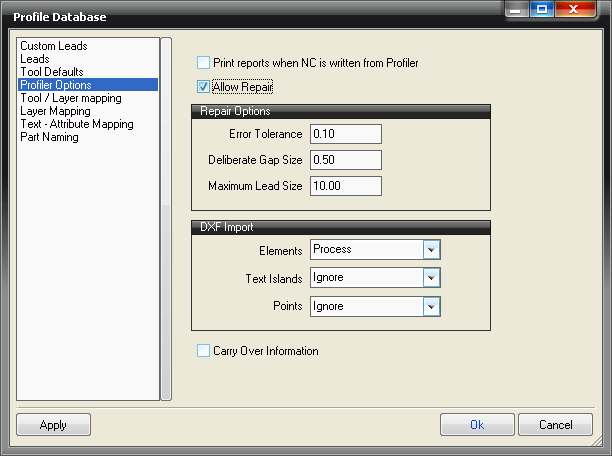

Attempts to fix any problems on the part using the parameters specified in File > Setup > Profiler Database > Profiler Options.
Allow Repair When this option is ticked it allows access to the Repair Options dialogue.
Repair Options There are three options that can be adjusted in this dialogue. These are:
- Error Tolerance Any errors in the file, below this figure, will be ignored.
- Deliberate Gap Size Any gaps, below the figure input in this box, will be ignored.
- Maximum Lead Size Sets the maximum size for Lead Ins and Lead Outs.
