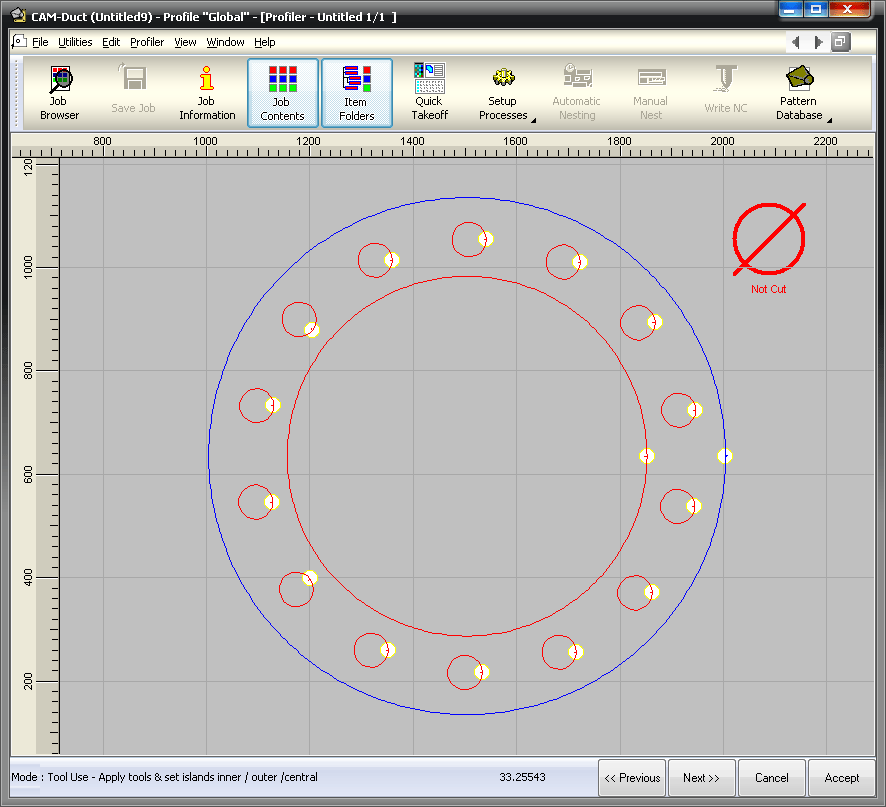

Profiler is the Module in ProfileMaster and CAMduct which pre-processes imported or CAD Drawn Parts created in Opus. To access Profiler you can Click on View > Profile from within the Opus program or click on the Profiler icon
, or type PROFILER from within the program. Profiler will open automatically when you Import a CAD item.
Once a part has been added to a job
- Select Utilities > Job Contents or select the Job Contents icon from the Utility Bar.
- Right-click on the item in the job, then clickEdit Developments to bring the part into Opus.
- From Opusclick on View > Profile.
- When importing parts from the Files - Import menu, clickYes when prompted to " Profile the part now."
Profiler provides options that control how the part geometry will be processed for manufacturing. Drawings cannot be altered in Profiler. To return to Opus, Click on View > Opus, to access the drawing tools or click on the Opus icon
in the toolbars or type OPUS in the program.

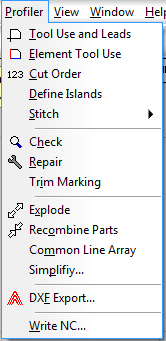

The commands available in Profiler are:
- Tool Use and Leads
- Element Tool Use
- Cut Order
- Define Islands
- Stitch
- Check
- Repair
- Trim Marking
- Explode
- Recombine Parts
- Common Line Array
- Simplify...
- DXF Export
- Write NC..
These can be accessed, from with the Profiler software, by selecting the Profiler Menu from the Menu bar.
Drawings cannot be altered in Profiler. To return to Opus, Click on View > Opus, to access the drawing tools or click on the Opus icon in the toolbars or type OPUS in the program.
