Multi Service Line - Toolbar/Commands

TOOLBAR COMMAND LINE NEWMSLOBJECT, NMSLOBJ

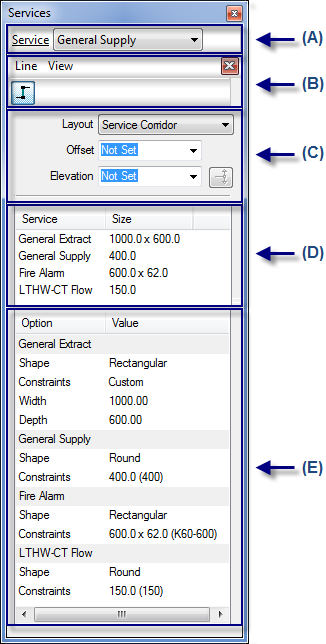

• Multi service line dialog





  (A) : Service Menu

  (B) : Multi service commands

• Line

  Create

  Orientation

  Change

  Delete

• View



  Fill

  Pick Multi-Service Line

  (C) : Frame, Elevation, Offset configuration dialog

  Layout menu

  Offset

  Elevation

  (D) : Service Information dialog

  (E) : Service Configuration dialog

• Multi service line commands

  Command	Abbreviation	Description
  Addmslayout	AMS	Add multi-Service layout
  Msclear	MSC	Clear Multi-Service Line Dirty-Flags
  Msltracepath	MTP	Trace Multi-Service Line Path
  Multiservicefill	MSF	Multi service Fill
  Newmslobject	NMSLOBJ	Create New Multi-Service Line
