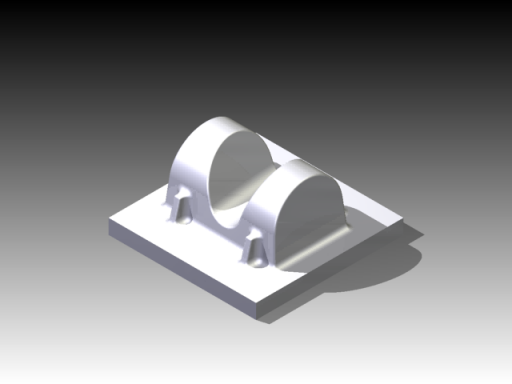

In this tutorial you will learn how to machine the part shown above on a high speed machine tool using the following procedures:
- Creating a Setup
- Creating a Tool Library
- Roughing with Adaptive Clearing
- Rest Roughing with Pocket
- Contour Machining
- Scallop Machining
- Horizontal Clearing
- Pencil Milling
- Post Processing
Before proceeding, open the part Tutorial4.ipt in Inventor HSM.
Note: The files used in these tutorials, as well as other sample datasets, can be found in the C:\Users\Public\Documents\Autodesk\Inventor HSM 2015\Examples subfolder.
