In this short tutorial you are introduced to two of the 3D machining strategies - Adaptive Clearing and Pocket Clearing . You will learn how to create two 3+2 Machining toolpaths using the following procedures.
- Using tool orientation instead of a setup
- Using adaptive machining to clear a pocket
- Using pocket to clear a second 3D feature

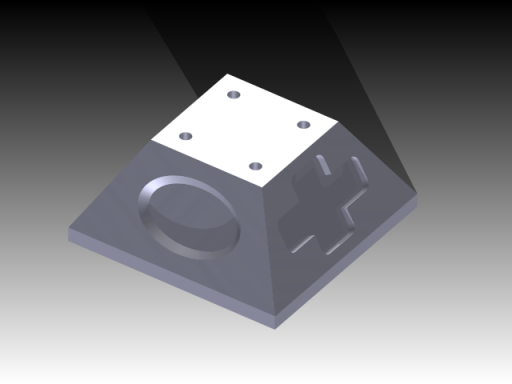

Before proceeding, open the part Tutorial3.ipt in Inventor HSM. The stock we start from is already finished to a shape that only requires the machining of the two pockets using 3+2 toolpaths.
Note: The files used in these tutorials, as well as other sample datasets, can be found in the C:\Users\Public\Documents\Autodesk\Inventor HSM 2015\Examples subfolder.
