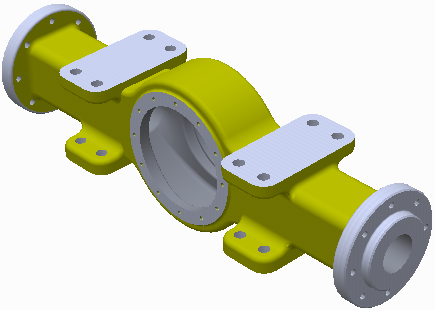

Create a section view to see inside your model. A section view does not modify geometry.
Use a planar face or plane to slice away a portion of a model temporarily.
Options for section views
- Quarter section view: Select two perpendicular planes. The three-quarter section facing you is removed.

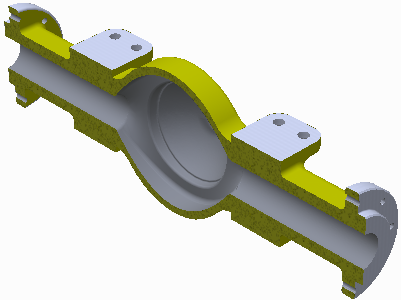

- Half section view: Select a plane. The half-section facing you is removed.
- Three-quarter section view: Select two perpendicular planes. The quarter section facing you is removed.
- End section view: Restores the view to the whole assembly.
Section views can be saved in design view representations.
After you select a section view, you can right-click and select Flip to cycle through available views. Quarter and three-quarter views can show the opposite view.
To move a section plane, right-click and select Virtual Movement
Section Plane 1 (or Section Plane 2). Then drag the section plane, set its offset, or rotate the mouse wheel.
Note: Both the quarter or three-quarter section view allow selection of any two planes, not just perpendicular planes. You can define the type of section cut and display sectional slices, if desired.
