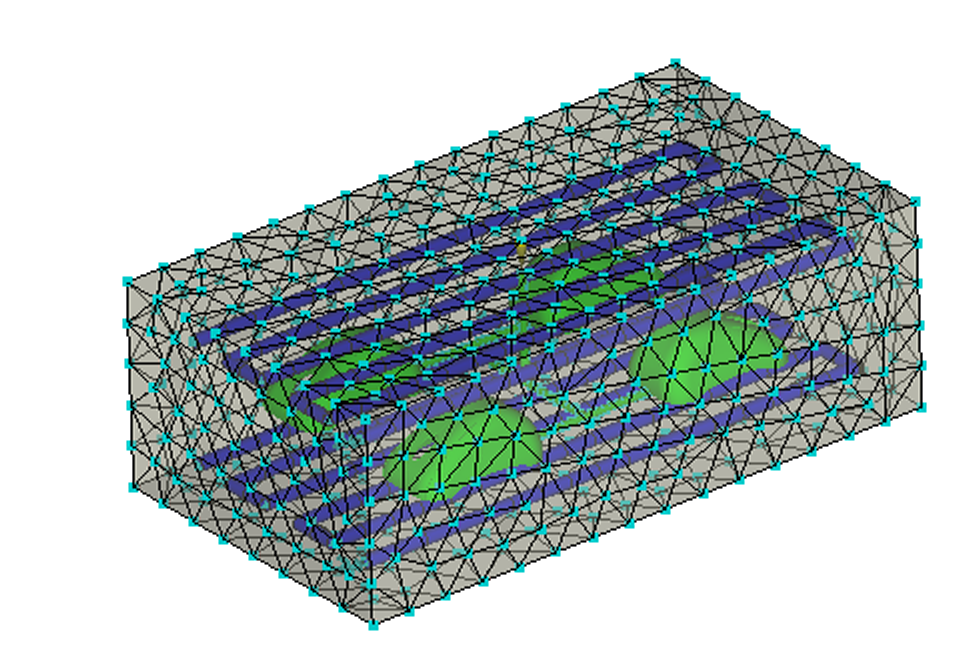

Create the Mold Boundary

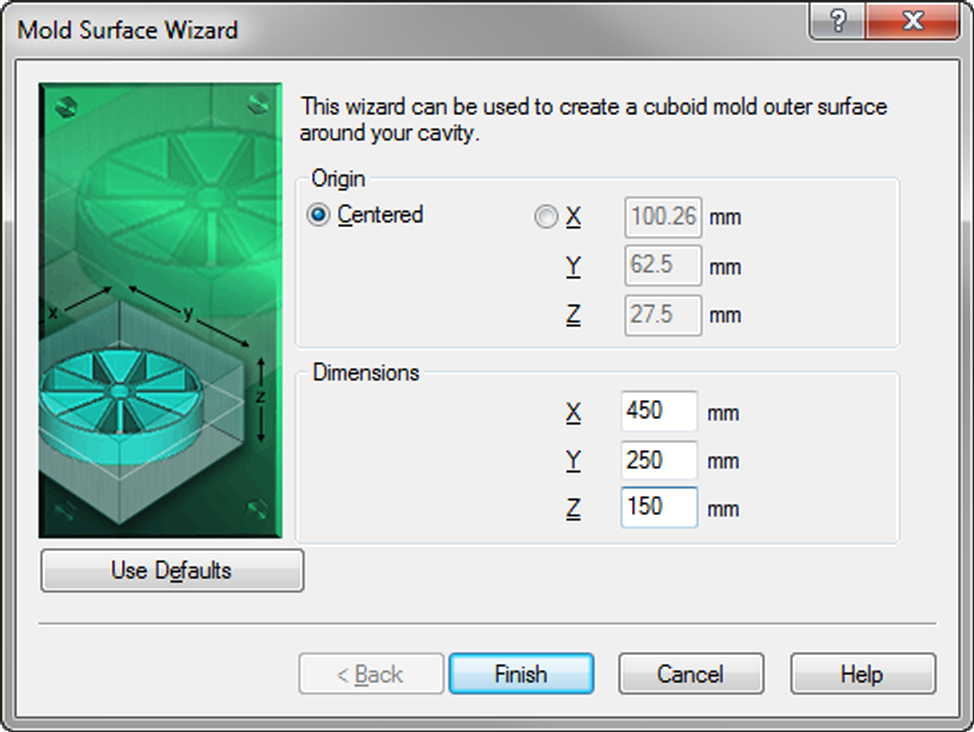

In this task, you use the Mold Surface Wizard to create a mold boundary.

  1. Click Geometry > Create > Mold Surface.

  2. Enter 450 for the X-dimension.

  3. Enter 250 for the Y-dimension.

  4. Enter 150 for the Z-dimension.

  5. Click Finish

  6. Uncheck the Mold surface (default)(Elements) layer.
