Review Volumetric Shrinkage Results

In this task, you interpret the volumetric shrinkage results.

1. Turn off all layers except the Parts layer.

2. Click Volumetric shrinkage at ejection in the study tasks list.



3. Rotate, pan, and zoom as necessary to see the volumetric shrinkage results.

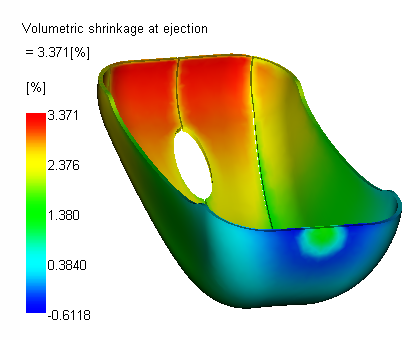

   The volumetric shrinkage for this material is best when between 1% and 3%. The end of fill is a little high, and the area near the gate is negative which means significant over packing.
