Add Piping Components from a Catalog

To add components to a spec

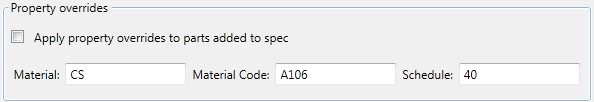

1. On the Catalog pane, select Apply Property Overrides to Parts Added to Spec.
2. In the Material box, enter a material (for example: CS).
3. In the Material Code box, enter a material code (for example: A106).
4. In the Schedule box, enter a schedule (for example: 40).

5. Specify a size range (for example: 2” to 12”).
6. Click Add to Spec.
   Note:

   To modify additional properties, such as Long Description, you can Edit Parts in the Spec Sheet pane after the part is added to the spec.
