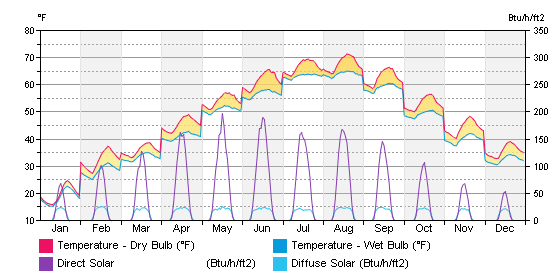

When reviewing an energy analysis in the Results and Compare dialog, this chart tracks annual averages for temperature and solar radiation.
Note: Available as an Autodesk® Subscription Benefit.
The y-axis on the left is the temperature, and the y-axis on the right is the solar radiation in BTUs per hour per area.
| Parameter | Description |
|---|---|
| Temperature - Dry Bulb | Daily averages of dry-bulb temperature for the entire year. |
| Temperature - Wet Bulb | Daily averages of wet-bulb temperature for the entire year. |
| Diffuse Solar | The portion of solar radiation that is scattered downward in the atmosphere. On clear days, diffuse radiation is about 10% of the total solar radiation reaching the earth's surface. On extremely overcast days, the portion of diffuse radiation may be close to 100%. |
| Direct Solar | The component of solar radiation reaching the earth's surface from the direction of the sun that has not been refracted, reflected, or scattered. |
