When segments of a continuous fascia meet at a corner, they miter. You can specify the mitering option: vertical, horizontal, or perpendicular.
A fascia does not miter with other existing fascias, even if they meet at the corners.
- In the drawing area, select the fascia.
- Click Modify | Fascias tab
Roof Fascia panel
(Modify Mitering). - On the Mitering panel, select a mitering option:
- Vertical
- Horizontal
- Perpendicular
- Click on the end face of the fascia to change the miter option.

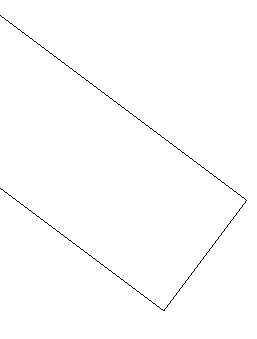

Vertical miter

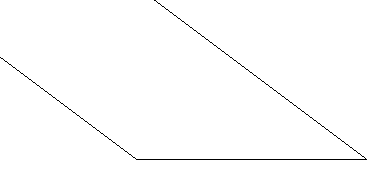

Horizontal miter
Perpendicular miter
- Press Esc to exit the Modify Mitering tool.
Roof fascias can miter between the eave and rake edges of a plumb-cut gable roof.
