Reveal Constraints

Take a temporary look at the dimension and alignment constraints in a view, to troubleshoot or modify elements in the model.

Note: This feature or functionality is available only to students and to Autodesk Maintenance and Desktop Subscription customers for Revit 2015 software releases.

Video: Reveal Constraints

  1. On the View Control Bar, click (Reveal Constraints). The Reveal Constraints drawing area displays a color border to indicate that you are in Reveal Constraints mode. All constraints display in color, and model elements display in half-tone (gray).
    Note: To make it easier to see the constraints in this mode, make sure that the Thin Lines display option is not selected (View tabGraphics panel Thin Lines).

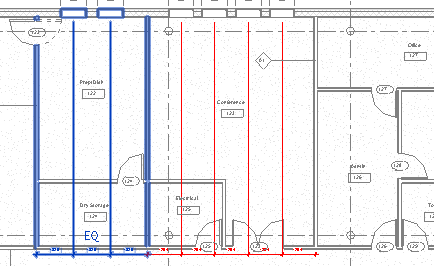

  2. Select a constraint to highlight the elements that are constrained. In the following example, the constraint on the left is selected, and the 2 walls and 2 windows that are constrained are also highlighted.
  3. Optional: Remove the constraint by simply deleting it, or by unlocking it.
    Note: Constraints that were added in sketch mode for an element display in half-tone color. Double-click the element to enter sketch mode to modify or remove the constraint.
  4. On the View Control Bar, click to exit Reveal Constraints mode.
