Create a Void Form
Create negative geometry (voids) to cut solid geometry with the Create Void tool.
On the Create tab
Draw panel, select one of the drawing tools.
Click in the drawing area, and draw a closed loop that intersects solid geometry.
Select the closed loop.
Click Modify | Lines tab
Form panel
Create Form drop-down

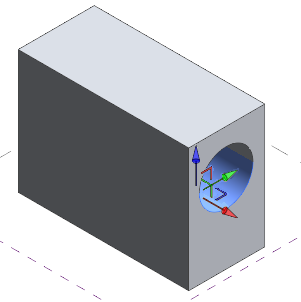

(Void Form). A void form extrusion is created.
(Optional) Click Modify | Form Element tab
Form panel
(Solid Form) to convert this void to a solid.
