Area Analysis
Use area analysis tools to define spatial relationships in the building model.
Topics in this section
About Areas

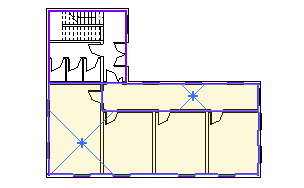

An area is a subdivision of space within a building model, typically on a larger scale than individual rooms.
Area Schemes
Area schemes are definable spatial relationships.
Area Plans
Area plans are views that show spatial relationships based on area schemes and levels in your model.
Area Boundaries
Area boundaries define usable space in buildings.
Areas and Area Tags
Areas and area tags are separate but related
Revit LT
components.
Removing Areas
About Area Types
Area types are an instance property of areas. Area types contain area measurement rules that
Revit LT
applies to area boundaries.
About Area Type Rules
Rules are determined by one type of space bordering another space.
