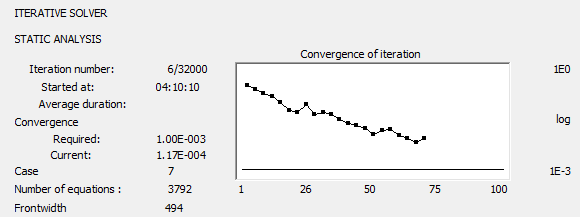

The iterative process for solving systems of equations is presented graphically.
The diagram shows a process of the iterative method convergence if the user defined level of accuracy is achieved, or if the process is divergent.
Additionally, the following information is given:
- Number of the iteration performed / maximum number of iterations.
- Required accuracy.
- Accuracy of the current iteration.
- Number of equations.
- Frontwidth.
