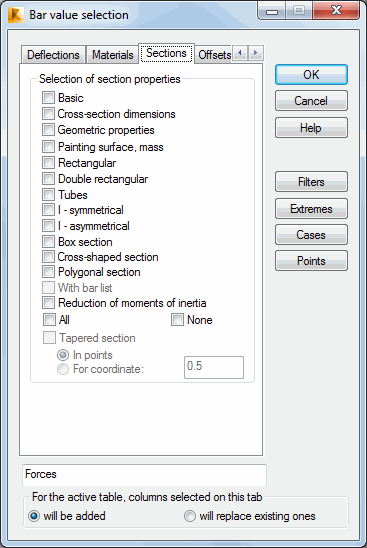

Select the Sections tab in the Bar Value Selection dialog to define bar section data for presentation.
The following data concerning sections of bars may be selected.
- Basic - presents basic data about bar sections.
- Lateral dimensions - presents data about lateral dimensions of bar sections.
- Geometric properties - presents data about geometric properties of bar sections.
- Painting surface, mass - presents data about the painting surface of bar sections.
- Elastic base.
- Rectangular - presents data about rectangular sections.
- Double rectangular.
- Tubes - presents data about tubes.
- L-symmetrical - presents data about symmetrical I-sections.
- L-asymmetrical - presents data about asymmetrical I-sections.
- Box section - presents data about box sections.
- Cross-section.
- Tapered section - presents data concerning bars with tapered section along their length.
