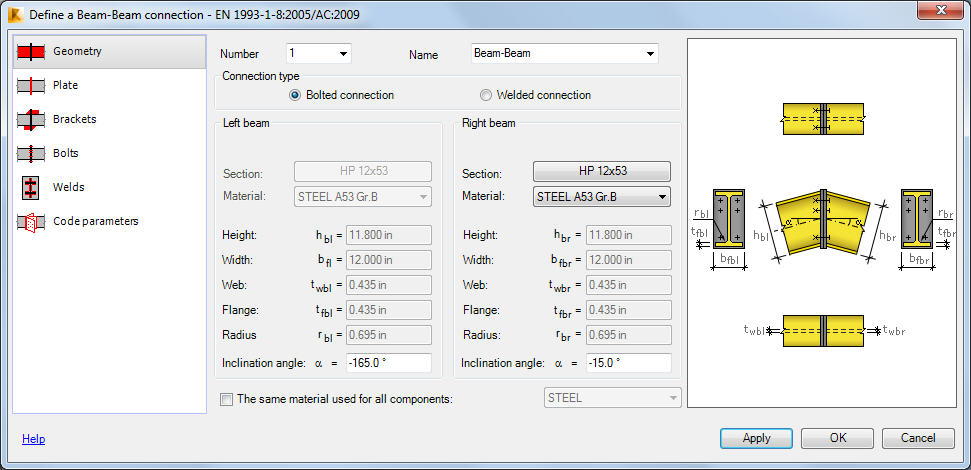

Parameters of geometry of the beam-beam steel connection include:
- beam connection type (bolted or welded)
- parameters of the left beam
- parameters of the right beam.
Geometrical and material parameters of beams for which to create a connection, display in the center of the dialog.
After selecting The same material used for all components, beams are made of the same material.
Note: The number of tabs in this dialog depends on a selected connection type: bolted or welded.
