Shear

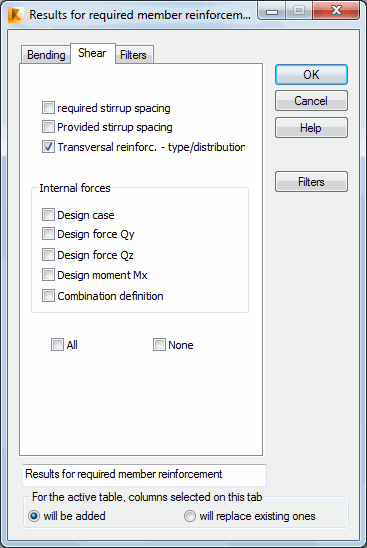

Select the Shear tab in the Columns dialog (Theoretical (required) reinforcement of bars - RC columns, beams). The following dialog displays.

The following quantities can be selected for a table of results of theoretical (required) reinforcement for structure bars.

• Stirrup spacing - Stirrup spacing along a structure bar length (required and provided)
• Transversal reinforcement - distribution/type - Type and distribution of transversal reinforcement (code-defined reinforcement distribution)
• Internal forces
  • Design case - Decisive for the bar design process (reinforcement area).
  • Design force Qy and Qz - Shear force values
  • Design moment Mx - Torsional moment value
  • Combination definition - Definition of the combination decisive for the bar design process (reinforcement area).

The bottom part of the dialog contains the following options.

• All - All options in the tab will be presented.
• None - None of the options in the tab will be presented.
