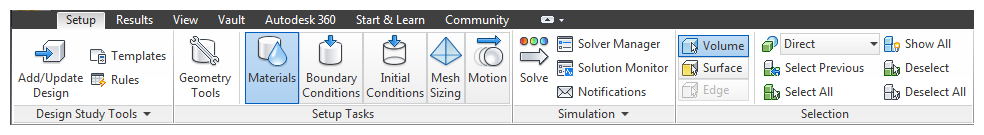

Setup Tab

Use the Setup tab to define and run the simulation model:

• Use Design Study Tools to update the Design Study and to manage Design Study Automation tools.
• Select each of the Setup Tasks, from left to right, to define the simulation. (Note that each task, except Geometry Tools, spawns an additional context panel.)
• Use Simulation to run and manage one or more simulations.
• Control entity selection with Selection.

Note: The Setup Tasks and Simulation panels contain the primary controls for setting up and running a simulation.
