Apply Simulation CFD Fluid Boundary Reactions to a Simulation Mechanical Stress Analysis

The interoperability between Autodesk® Simulation CFD and Autodesk® Simulation Mechanical supports fluid structural interaction (FSI). Specifically, this implementation is a type of one-way coupled multiphysics analysis. You apply the fluid boundary reactions (that is, static pressure results) from a CFD simulation as loads on a structural analysis model. The software converts the CFD static pressures (at the fluid-to-solid part boundaries) to nodal forces on the Mechanical model.

The meshes do not have to be identical, but you must base both meshes on the same CAD geometry. The interoperation process verifies that the CFD and Mechanical models have matching CAD geometry. The meshing requirements for CFD and structural analyses can be considerably different. Mapping the pressure on the element faces of one mesh to forces on the nodes of a dissimilar mesh provides significant modeling flexibility. This process allows you to use the most appropriate type of mesh for each respective analysis type.

The following Simulation Mechanical analysis types support FSI workflows using Simulation CFD results:

• Linear:
  • Static Stress with Linear Material Models
  • Natural Frequency (Modal) with Load Stiffening
  • Critical Buckling Load
• Nonlinear:
  • MES with Nonlinear Material Models
  • Static Stress with Nonlinear Material Models

The Simulation CFD fluid flow analysis can be either steady-state or transient. However, if the CFD analysis is transient, you must choose a single time step from which to apply the results to the Simulation Mechanical model. If running a nonlinear analysis in Simulation Mechanical, you must use Load Curve 1 to control the magnitude of the fluid reaction forces as a function of time. Use Load Curve 2 and above to control any other applied loads.

Currently, fluid structural interaction between CFD and Mechanical is limited to 3D models based on CAD solid geometry.

Example

Here is an example of one-way FSI. Determine whether a product, in this case an outdoor lamp post, can withstand the wind loads experienced during severe weather conditions. In the CAD model, include a fluid region that encompasses the above-ground portion of the lamp post.

Import the CAD model into Simulation CFD. Define the fluid as Air. Specify a fluid velocity of 150 miles per hour (our wind speed) at the fluid inlet surface. Complete the necessary meshing and setup of a stead-state fluid flow analysis, and run the simulation.

Figure 1: Static Pressure Results of CFD Analysis

Import the same CAD geometry into Simulation Mechanical, but suppress the part that represents the air. Constrain the bottom of the post (buried portion). Specify the source of fluid reaction forces; the CFD study and design scenario. Complete the necessary meshing and setup of a linear static stress analysis, and run the simulation.

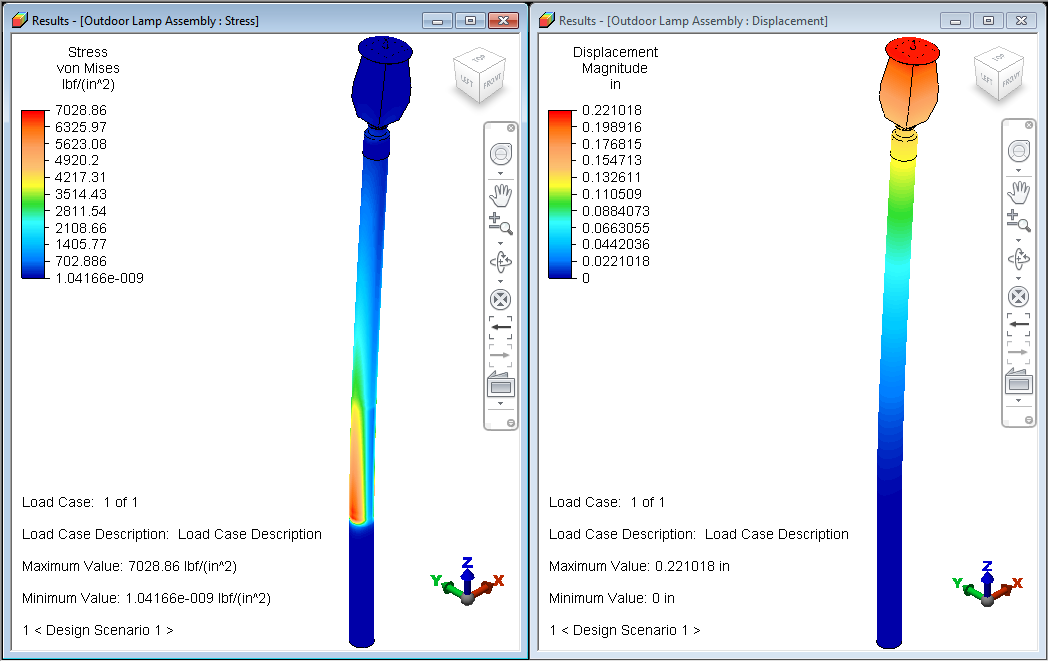

Figure 2: Von Mises Stress and Displacement Magnitude Results of Mechanical analysis.

Process

Important: For correct FSI results, ensure that the model units are identical between Simulation CFD and Mechanical. The best way to ensure identical units is to push the solid model from the CAD application into both programs. When the model transfer is initiated from the CAD application, Simulation CFD uses the CAD model units for the CFD study . However, when you pull in the model (that is, open the CAD model from within CFD), then the default CFD unit system is used instead. That is, the default CFD units override the CAD sold model units. Conversely, whether the model is pushed or pulled into Mechanical, the model units match the incoming CAD model units.

Sometimes pushing the CAD model into Simulation CFD is not an option. Here are three examples:

• Your CAD model is in a universal format (such as Step, ACIS, or IGES)
• You do not have the native CAD application installed on your simulation workstation
• The native CAD application is not one for which direct transfer to the Autodesk Simulation products is supported

In such cases, make sure you define the correct length unit when creating the CFD study. You cannot directly set the force units in Simulation CFD. Rather, the force unit is controlled by the length unit specification. For example, if you choose an English length unit (inch or foot), the force unit is pounds of force (lb_f). If you choose a metric length unit (mm, cm, or m), the force unit is Newtons (N).

1. Set up and run the fluid flow simulation in Simulation CFD. Both fluid and solid parts are active for this phase.
2. The two simulation programs do not both have to be installed on the same computer for interoperability to work. If Simulation CFD and Mechanical are on different workstations, transfer the CFD model files to the Mechanical workstation. To facilitate transferring the necessary files, archive the study with results. Then, copy the *.cfz file to the Mechanical analysis computer, and extract the contents. The *.cfz file is a standard zip archive, which you can associate with your preferred zip file manager.
   Important: If you are running CFD and Mechanical on the same workstation, exit Simulation CFD before proceeding further. Exiting Simulation CFD closes the study and releases all of the results files so that Simulation Mechanical can properly access them.
3. Import the same CAD model into Simulation Mechanical. Suppress the fluid part, which is not used in the structural analysis. Only the solid parts are considered.
4. Access the Fluid Reactions tab of the Analysis Parameters dialog box. There are several ways to access this tab:
   • Click Setup Loads CFD Results Fluid Reactions.
   • Click Setup Model SetupParameters to access the Analysis Parameters dialog box. Then, click the Fluid Reactions tab.
   • Right-click the Analysis Type heading in the browser and choose the Edit Analysis Parameters command. Then, click the Fluid Reactions tab.
5. Choose Simulation CFD file from the Source of Reaction Loads pull-down menu.
   1. Click Browse and navigate to the folder where the CFD study resides. Select the appropriate *.cfdst file and click Open.
   2. Select which design scenario to use from the CFD model using the pull-down menu immediately below the design study path and filename.
   3. You must specify which step to use for the reactions if either of the following two conditions apply. Use the Which step to use drop-down menu to select the step. This option does not appear in the dialog box if only one step is available for input.
      • The selected design scenario is a transient fluid flow analysis from which multiple steps were output
      • The selected design scenario is a steady-state analysis for which you chose to save intermediate steps.
6. Complete all required meshing and model setup steps. (Add constraints, apply other loads, define material properties, and so on.) Then run the simulation.
7. In addition to viewing stress, strain, and displacement results, you can verify the applied fluid reaction loads. Click Results Contours Other Results Reactions Applied Force, and choose one of the available options:
   • Magnitude
   • X
   • Y
   • Z
   • Vector Plot
   Note: The load mapping and interpolation process introduces a small amount of error between the CFD wall forces and the Mechanical reaction forces. This error is due to the differing size, shape, and orientation of the element faces between the CFD and Mechanical meshes. The comparative fluid boundary force results are typically within 10 or 15% of each other.
   Tip: You will tend to achieve better results when the Mechanical mesh is finer than the CFD mesh
