ViewCube

Autodesk® ViewCube® navigation tool provides visual feedback of the current orientation of a model. You can use the ViewCube to adjust the viewpoint of the model.

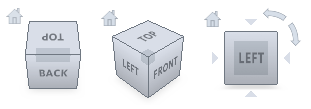

The ViewCube tool is a persistent, clickable and draggable interface that you use to switch between standard and isometric views of your model. When you display the ViewCube tool, it is shown in one of the corners of the window over the model in an inactive state. The ViewCube tool provides visual feedback about the current viewpoint of the model as view changes occur. When the cursor is positioned over the ViewCube tool, it becomes active. You can drag or click the ViewCube, switch to one of the available preset views, roll the current view, or change to the Home view of the model.

Control Appearance of ViewCube

The ViewCube tool is displayed in one of two states: inactive and active. When the ViewCube tool is inactive, it appears partially transparent by default so that it does not obscure the view of the model. When active, it is opaque and may obscure the view of the objects in the current view of the model.

In addition to controlling the inactive opacity level of the ViewCube tool, you can also control the following properties for the ViewCube tool:

Size
Position
Default orientation
Compass display

Use the Compass

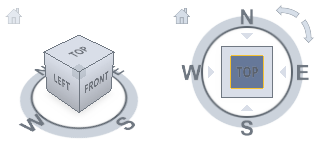

The compass is displayed below the ViewCube tool and indicates which direction North is defined for the model. You can click a cardinal direction letter on the compass to rotate the model, or you can click and drag one of the cardinal direction letters or the compass ring to interactively rotate the model around the pivot point.

Drag or Click the ViewCube Tool

When you drag or click the ViewCube tool, the view of the model reorients around a pivot point. The pivot point is displayed at the center of the object that was last selected before using the ViewCube tool.

Control the ViewCube

To control the position of ViewCube

Right-click the ViewCube, and click Properties.
In the ViewCube Properties dialog box, select one of the available positions from the On-screen Position drop-down list.
Click OK.

To control the size of ViewCube

Right-click the ViewCube, and click Properties.
In the ViewCube Properties dialog box, select an option from the ViewCube Size drop-down list.
Click OK.

To control the inactive opacity of ViewCube

Right-click the ViewCube, and click Properties.
In the ViewCube Properties dialog box, select an option from the Inactive Opacity drop-down list.
Click OK.

To display the compass below ViewCube

Right-click the ViewCube, and click Properties.
In the ViewCube Properties dialog box, under Compass, select Show the Compass.
The compass is displayed beneath the ViewCube and indicates the direction of North for the model.
Click OK.

ViewCube Menu

Use the ViewCube menu to restore and define the Home view of a model, switch between view projection modes, and change the interactive behavior and appearance of the ViewCube. To display the ViewCube menu, do one of the following:

Right-click on the compass, Home icon, or the main area of the ViewCube.
Click the context menu button located near the ViewCube.

The following options are included in the ViewCube menu:
Home	The default view of the model. You can change the default view using Set current view as home. You can navigate to the Home position by selecting this option from the context menu or by clicking the Home icon displayed just above the ViewCube.
Orthographic	A display mode where all points of a model are projected along parallel lines to the screen.
Perspective	A display mode where a model is displayed in three-point perspective, very similar to the way objects in the real world are perceived by the human eye.
Lock to selection	The center and distance does not change regardless of whether objects are selected or deselected.
Set current view as Home	Defines the current view as the default view: Fixed Distance: Sets a Home view that defines both the direction of the view and the extent of the model that fills the view. Fit to View: Sets a Home view that defines the direction of the view, with the extent always ‘view all’. The initial Home view of Legacy documents is set to Fit to View.
Set current view as Front view	Set the ViewCube orientation relative to the model by aligning the current view to look at the FRONT of the model, then use Set current view as with the appropriate selection. The ViewCube Bottom view determines the orientation of the model ground plane. Redefining the ViewCube affects the model ground plane, ground shadows, and ground reflections.
Reset Front	Rests the front view to the default setting.
Properties	Opens the ViewCube Properties dialog box.
Help Topics	Launches the online Help system and displays the topic on the ViewCube.

ViewCube Properties

Set the preferences for working with the ViewCube.

Access:

Click Options Graphics Navigation Tools ViewCube, or choose the Properties command from the ViewCube menu to access the ViewCube Properties dialog box.

ViewCube display preferences:
Show the ViewCube	When the check box is enabled, the ViewCube displays in the graphics window by default. When the display of the ViewCube is disabled, the ViewCube is automatically made available from the Navigation bar.
On-screen Position	The ViewCube can be placed in any corner of the screen by selecting one of the options in the On-screen Position drop-down selector—Top Right, Bottom Right, Top Left, or Bottom Left.
ViewCube Size	Sets the ViewCube size to Tiny, Small, Normal, or Large.
Inactive Opacity	When the cursor is in the vicinity of the ViewCube, the cube and all the additional controls are displayed, fully opaque. When the cursor is distant from the ViewCube, the ViewCube may be displayed at reduced opacity. Specifies the opacity display when the cursor is distant (inactive) from the ViewCube.
Keep scene upright	When clicking on edges, corners, or faces of the ViewCube, the orientation algorithm attempts to turn the viewpoint so that upside-down orientations of the scene are avoided.

Drag the ViewCube:

While you click and drag the ViewCube, the scene rotates in the same manner as the ViewCube (which rotates about its own center).

When dragging on the ViewCube preference:
Snap to closest view:	If this option is enabled, the viewpoint snaps to one of the fixed views when the rotated position is angularly close to one of the fixed views.

Click on the ViewCube:

Click on a face, edge, corner, adjacent face arrow, or rotation arrow to switch between various standard display viewpoints.

When clicking on the ViewCube preferences:
Fit-to-View on view change	If selected, clicking the ViewCube rotates around the center of the scene and zooms out to fit the scene into the viewport. When dragging the ViewCube, the view changes to look at the scene center prior to the drag (but does not zoom) and continues to use that as the pivot point while dragging. If not selected, clicking or dragging the ViewCube rotates around the current pivot point and does not zoom in or out.
Use animated transitions when switching views	An animated transition displays when you click on a section of the ViewCube. This is done to help you visualize the spatial relationship between the current viewpoint and the selected viewpoint. Note: When navigating about 3D scenes that contain vast amounts of geometry, the application frame rate can drop significantly. This frame rate reduction can make it difficult for the system to smoothly animate a viewpoint transition.

When clicking on the ViewCube preferences:

Fit-to-View on view change

If selected, clicking the ViewCube rotates around the center of the scene and zooms out to fit the scene into the viewport. When dragging the ViewCube, the view changes to look at the scene center prior to the drag (but does not zoom) and continues to use that as the pivot point while dragging. If not selected, clicking or dragging the ViewCube rotates around the current pivot point and does not zoom in or out.

Use animated transitions when switching views

An animated transition displays when you click on a section of the ViewCube. This is done to help you visualize the spatial relationship between the current viewpoint and the selected viewpoint.

Note: When navigating about 3D scenes that contain vast amounts of geometry, the application frame rate can drop significantly. This frame rate reduction can make it difficult for the system to smoothly animate a viewpoint transition.

Compass preferences:
Show the Compass	Sets the preference for the display of the Compass. This feature is turned off by default.
Angle of North	Sets the angle between the ViewCube FRONT face and the Compass direction North.
