The Utility Design Dashboard contains the following four palettes:
- Feature Info—Displays information about the selected features in your design. Click Home tab
Palettes panelDashboardFeature Info to open the Dashboard with the Feature Info palette displayed. Contained features are displayed in a hierarchical view under the parent feature. Features that are connected to other features are indicated by the
icon. For more information on Containment, see About Containment. For more information on Connection, see About Connection.

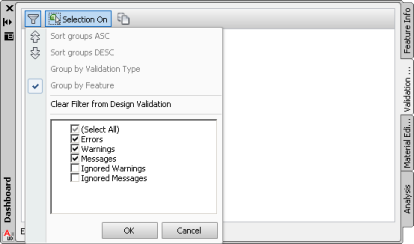

- Validation Results—As you create features, validation rules check for issues and display them in the Validation Results palette. Use the Filter option to specify which issues are displayed and how the information is organized. For more information, see About Design Validation.

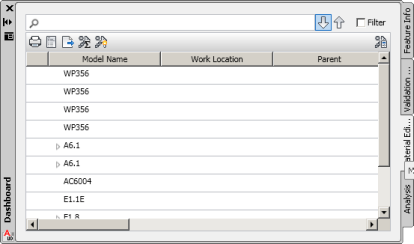

- Material Editor—As you create features, the Material Editor generates a dynamic material list. For more information, see About Material Lists.

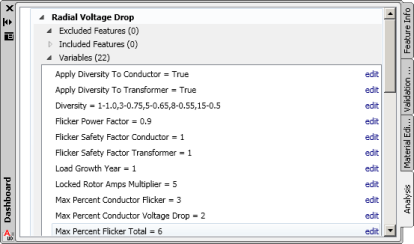

- Analysis—Displays the available analysis operations, the features included and excluded from each operation, variables and rules that define the analysis, and results after the analysis is complete. For more information, see About Analysis Results.
