Inventor Vault Add-in–Configure Separate Servers for Vault Log In

You can specify separate servers for Vault and Content Center by following these steps.

Tip: Autodesk recommends that if you work in a large workgroup, store Content Center and Vault files on separate servers to optimize performance.

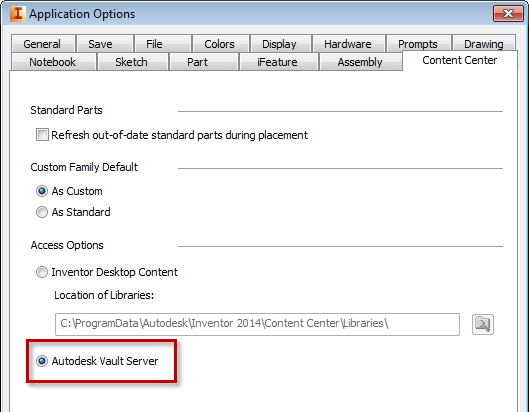

1. Inside the Inventor Application Options dialog, make sure that Inventor is configured to use Vault for Content Center Libraries.

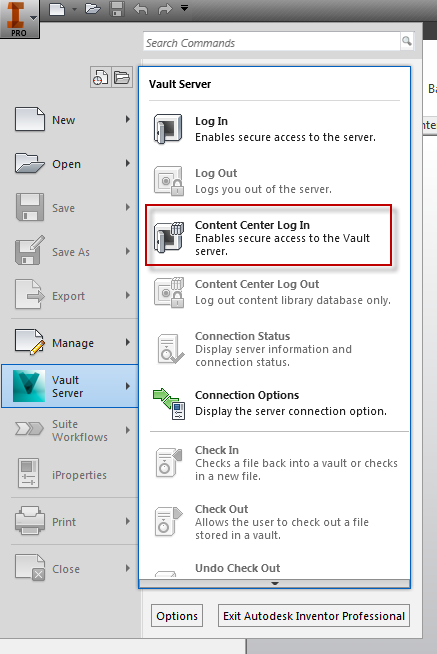

2. In the Inventor Application menu, select Content Center Log In.

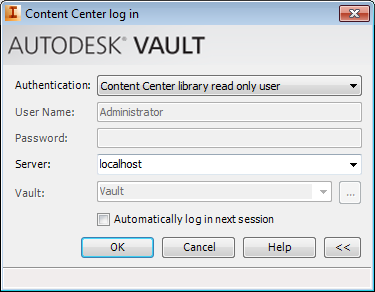

3. On the Content Center Log in dialog set the server for the Content Center Libraries.

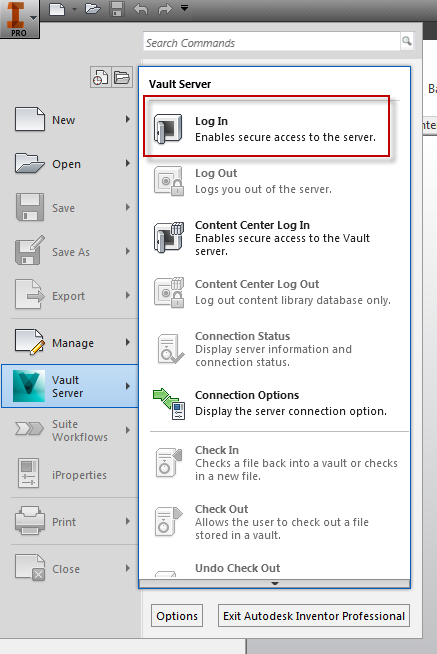

4. Go to  Application Menu ► Vault Server ► Log In.

5. Log into Vault.
