Prefabricated elements - columns

Using the Autodesk AutoCAD Structural Detailing - Formwork Drawings module, you can define and modify predefined types of prefabricated columns:

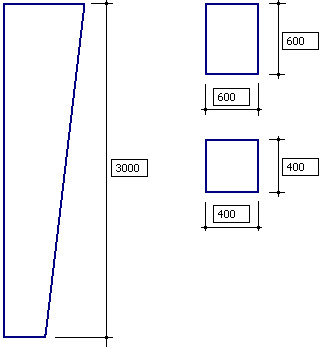

• Column with a rectangular cross-section (tapered section)


  You can also define positions of the cross-section at the beginning and end of a column (how the cross-section defined at the column beginning is positioned at the column end):

  Some characteristic positions of cross-sections at the beginning / end of a column
  An arbitrary position of the cross-section determined by specifying values for parameters A and B.

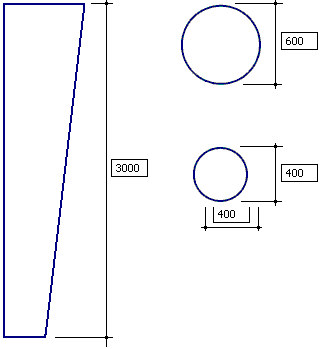

• Column with a round cross-section (tapered section)


  You can also define the following positions of the cross-section at the beginning and end of a column (how the cross-section defined at the column beginning is positioned at the column end):

  Some characteristic positions of cross-sections at the beginning / end of a column
  An arbitrary position of the cross-section determined by specifying a value for parameter A.

• Column with a rectangular or round cross-section, with a head


  You can define the following column head types for this type of column:
