Detail

Select the Detail option from the tree in the Job Preferences dialog to display the following tabs in the right pane of the dialog.

1. General parameters tab


   Specify a name and scale of the drawing at the top of the dialog.

   Below you can define description parameters; if the Drawing description option is selected, the options below become available:

   • Drawing description - select it to define a detail description; specify the following parameters: color, style and size of the description.

   • Description location - select it to define the location of a description in a detail drawing; you can select several locations (above or under the drawing, on the right side, on the left side or in the middle) and a distance between the description and the detail drawing.

   Note: If the Drawing description option is selected, the defined name of a drawing displays in the Object Inspectorpane and in the created drawing (as a drawing title); if the Drawing description option is cleared, the defined name of a drawing displays only in theObject Inspector pane.

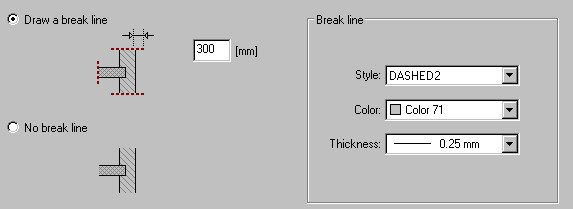

2. Breaks tab



   Use these options to define parameters of presenting breaks of elements of a structure model in a detail drawing:

   • No break line - select it and break lines will not be presented (no options are available on this tab)

   • Draw a break line - select it and break lines will be presented; the following options are available on this tab:

     line style, color, thickness of a break line and length of the line outside the element of a structure model.
