Graphic designation

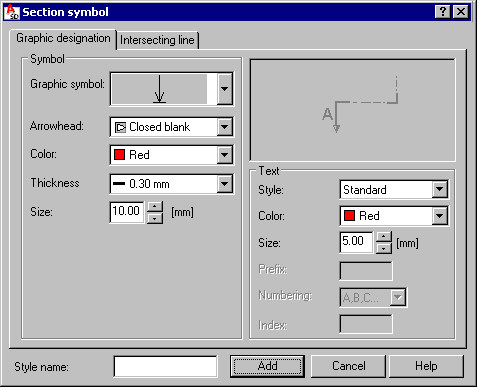

On the Graphic designation tab of the Section symbol dialog, you can define the graphic representation of a section symbol.

Specify parameters:

• Under Symbol, define symbol graphics
  • Graphic symbol type
  • Arrowhead
  • Color
  • Size
  •  Thickness of a line in the symbol

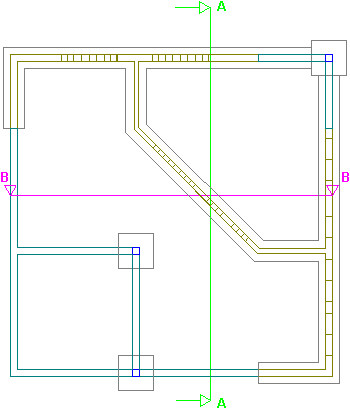

    An example of a section symbol is shown in the drawing below.



• Under Text, define the style, color, and size of the label text. Also, you can specify a prefix and a numbering type (A, B, C; 1, 2, 3; I, II, III; or user-defined).
