Shearplate - beam/column web

Using the shearplate - beam/column web steel connection type, you can connect a beam to a column web with either a bolted or a welded connection.

Allowable elements:

• Column

Straight profiles: all sections

• Beam

Straight profiles: all sections

Location of elements:

• Allowable angle in the plane of the beam web: (-90°; +90°)
• Allowable angle in the plane of the beam flange: 0

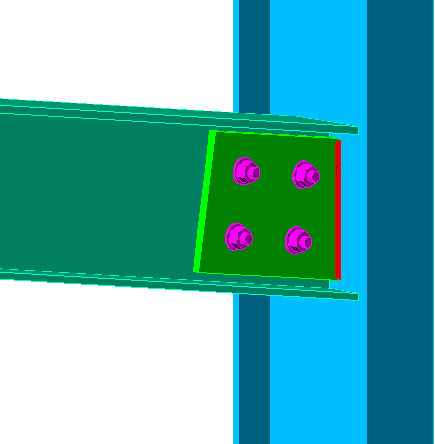

An example of the connection is displayed below.
