Use the Weld description style dialog to define a new style or modify an existing style of weld symbol description.
The dialog displays after you click New or Modify in the Styles of descriptions dialog when the Weld symbols category is selected. You can also access this dialog by selecting Modify display properties from the context menu on the Edition layout after selecting a weld.

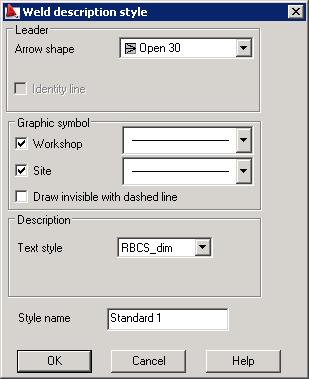

Define parameters:
- Style name - use this edit field to specify a name for the style
- Arrow shape - select a shape from the list; a user-defined shape is available, as well
- Text style - select a font to be applied in descriptions
- Graphic symbol - for 2D drawings, it is possible to display a graphical symbol of a weld using one of the lines shown below:
These lines can be configured separately for workshop welds and site welds. Line thickness and color are assumed to be the same as for the extension line.
