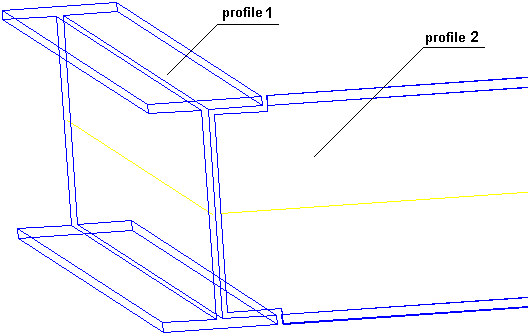

To begin fitting two I-sections, as illustrated in the drawing below:
- Select the Fit to object option
. - In the drawing area, select the profile to which the other profile should be fitted (profile 1) and the profile which should be fitted to profile 1 (profile 2).
- In the Fit by object dialog:
- For Type of fitting, select Passive and Internal.
- For Type, select 1 Type.
- Clear Consider roundings.
- Specify the fitting dimensions as displayed in the drawing below.
- Click Apply.
The I-sections fitted are displayed in the following drawing.
