Bill of materials

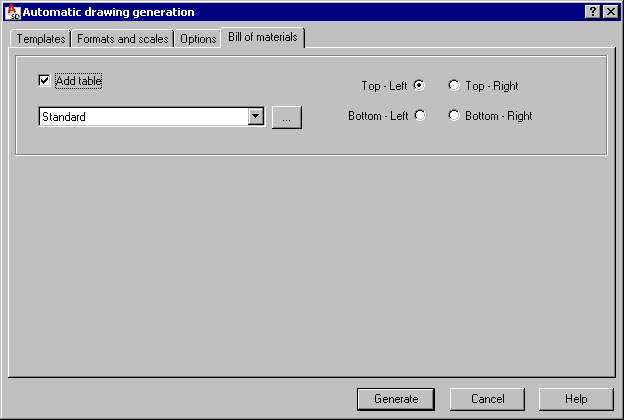

On the Bill of materials tab of the Automatic drawing generation dialog, you can specify parameters for a bill of materials table.

If Add table is selected, a steel summary table will be added to the printout.

Specify the corner of the printout in which to locate the table:

• Top - Right
• Top - Left
• Bottom - Right
• Bottom - Left

Click the Browse (…) button to open an additional dialog where you can choose a template of a steel summary table.
