Using the Clip angle: to web steel connection type, you can connect the web of a secondary beam to the rib of the main beam with either a bolted or a welded connection.

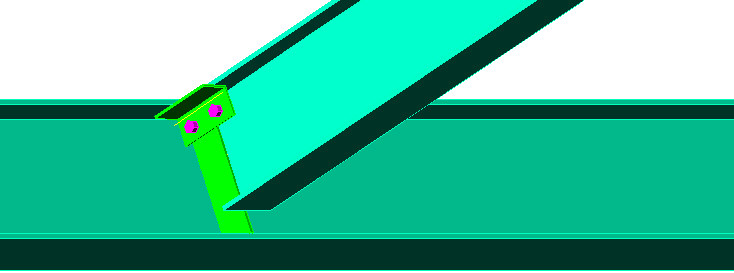

An example of the connection is displayed below.
