Using the frame knees - haunches steel connection type, you can connect a beam with a column with either a bolted or a welded connection.
Allowable elements:
- Column
Straight profiles - all sections
- Beam
Straight profiles - all sections
Location of elements:
- Allowable angle in the plane of the beam web: (-90°, 90°) without the extreme values
- Allowable angle in the plane of the beam flanges: 0°

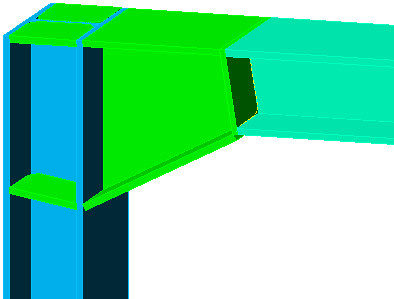

An example of the connection is displayed below.
