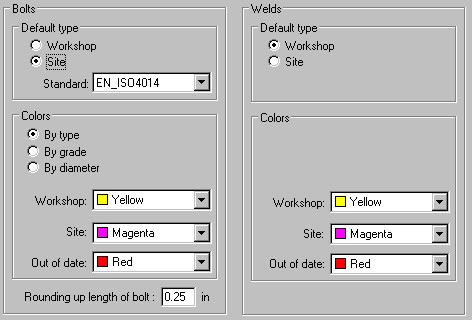

After you click Connectors from the left pane of the Project preferences dialog, the parameter options are as shown.
Define parameters of bolts and welds:
- For Default type, select a default weld/bolt type (workshop or site)
- Under Bolts, you can select a standard (database) of bolts used in the software
- Under Colors, you can specify the color of the following types of connectors displayed in drawings: workshop, site, or out-of-date (these are no longer current connectors after changes have been made in a structure model)
Specify bolt parameters:
- Select a method of assigning colors to bolts: by type, by grade, or by diameter.
- Determine a rounding up length of bolts - in the software, the bolt length is automatically calculated for connections of elements. The default value for rounding up length is 5 mm, which you can modify. A value of this parameter is saved with the project in a DWG file.
