Using the Rib distribution steel connection type, you can distribute ribs (one-sided or double-sided) along the beam length.
Allowable elements:
Ribbed element
- Straight profiles - all sections (it is not recommended to use profiles without flanges)
- Three plates set in the arrangement that makes up an I-section (2 flanges and a web)
Location of elements:
No limitations

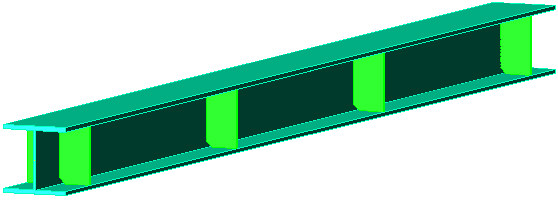

An example of the rib distribution for a steel beam is displayed below.
