Using the Column base - fixed steel connection type, you can connect a column with the spread footing (column fixing).
Allowable elements:
Column
- Straight profiles - all sections
- Bent profiles - all sections
- Plate girder - beam
- Plate girder - column
- Compound profiles; a column base may be generated for the following types of compound columns
Type 1:
Type 2:
Type 3:
Type 4:
Type 5:
Location of elements:
No limitations

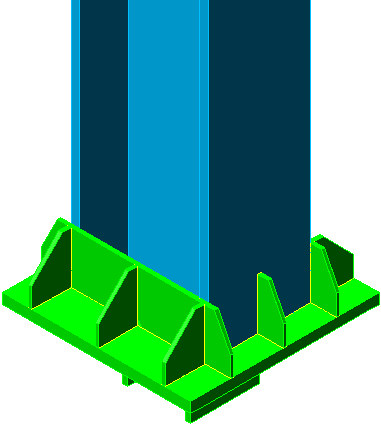

An example of the connection is displayed below.
