Workframes

After you click Workframes from the left pane of the Preferences tab, the parameter options are as shown.

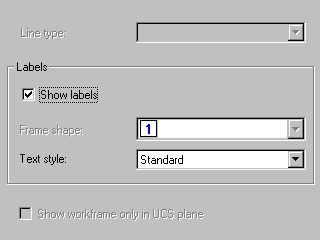

Specify display parameters for the defined workframes:

• The Line type list contains all line types available in the AutoCAD ^® project. Select a line type applied to lines of the workframes displayed in a structure model.
• Under Labels:
  • Show labels - lets you switch the description of workframe lines on or off.
  • Frame shape - specify the shape of descriptions of workframe lines (round, rectangular, or without frame).
  • Text style - from the list of all text styles available in the AutoCAD ^® project, select a text style applied to descriptions of lines belonging to the workframes presented in a structure model.
• Show workframe only in UCS plane - if this is selected, only these workframe lines which are positioned in the active local coordinate system are presented in the model.
