Multisegment Beam - Welds

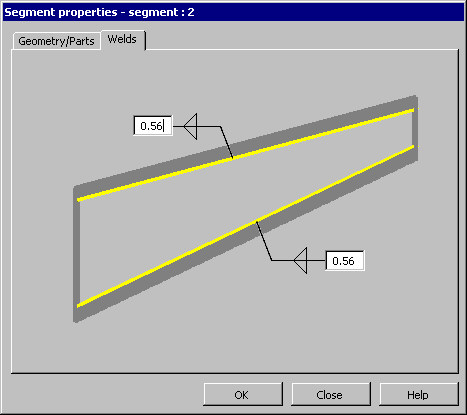

Use the Welds tab of the Segment properties dialog to define parameters of welds of a selected segment of a multisegment beam.

Define thicknesses of double-sided welds between the web and:

• the upper flange of a beam segment
• the lower flange of a beam segment
