Using the clip angle - beams/column web - double sided steel connection type, you can connect beams to a column web with either a bolted or a welded connection. The welded connection can be to the column, to the beam, or to both..
Allowable elements:
- Column
- Straight profiles -sections: I-sections and C-sections (types: 10-15; 20-25; 37; 38; 42)
- Plate girder - beam
- Plate girder - column
- Beam 1
- Straight profiles - sections: I-sections and C-sections (types: 10-15; 20-25; 37; 38; 42)
- Plate girder - beam
- Beam 2
- Straight profiles - sections: I-sections and C-sections (types: 10-15; 20-25; 37; 38; 42)
- Plate girder - beam
Location of elements:
- Allowable angle in the plane of flanges of secondary beams: (-30°, 30°)
- Allowable angle in the plane of the secondary beam web: (-90°, 90°)

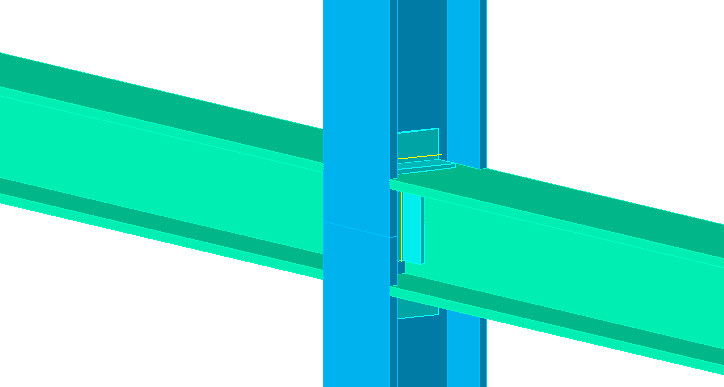

An example of the connection is displayed below.
