Using the Column base with anchor beams steel connection type, you can connect a column with the spread footing by means of anchor beams.
Allowable elements:
Column
- Straight profiles - sections: I-sections, sets of I-sections, square and hexagonal pipes, C-sections and sets of C-sections, solid rectangular sections (types: 10-25; 30; 31; 34, 35, 37-43, 45-47)
- Plate girder - beam
- Compound profiles; a column base may be generated for the following types of compound columns
Type 1:
Type 2:
Type 3:
Type 4:
Type 5:
Location of elements:
No limitations

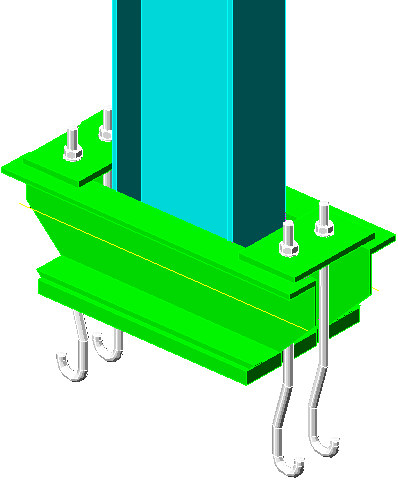

An example of the connection is displayed below.
