Connections

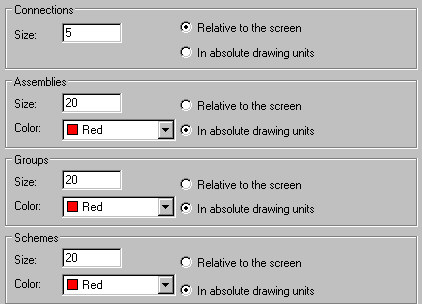

After you click Connections from the left pane of the Steel tab, the parameter options are as shown.

Specify display parameters for labels of defined connections (spheres), assemblies, and groups:

• Under Connections:
  • Size - define the size of the connection symbol
  • Relative to the screen - if this is selected, the size is expressed as a percentage
  • In absolute drawing units - if this is selected, the size is expressed in units used in AutoCAD^®
• Under Assemblies:
  • Color - select a color for the assembly symbol
  • Size - define the size of the assembly symbol
  • Relative to the screen - if this is selected, the size is expressed as a percentage
  • In absolute drawing units - if this is selected, the size is expressed in units used in AutoCAD^®
• Under Groups:
  • Color - select a color for the group symbol
  • Size - define the size of the group symbol
  • Relative to the screen - if this is selected, the size is expressed as a percentage
  • In absolute drawing units - if this is selected, the size is expressed in units used in AutoCAD^®
• Under Schemes:
  • Color - select a color for the scheme symbol
  • Size - define the size of the scheme symbol
  • Relative to the screen - if this is selected, the size is expressed as a percentage
  • In absolute drawing units - if this is selected, the size is expressed in units used in AutoCAD^®
