Using the endplate - beam/column web steel connection type, you can connect a beam to a column web with either a bolted or a welded connection.
Allowable elements:
- Column
Straight profiles: all sections
- Beam
Straight profiles: all sections
Location of elements:
- Allowable angle in the plane of the beam web: (-90°; +90°) without the extreme values
- Allowable angle in the plane of the beam flanges: 0

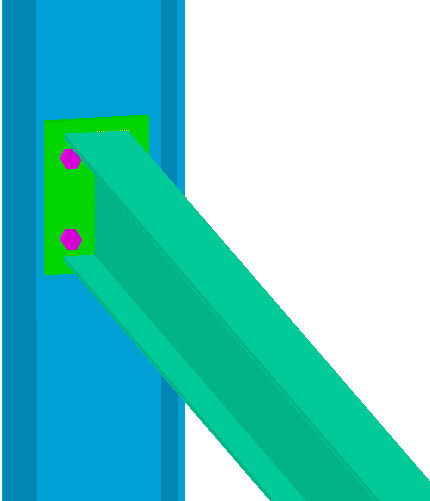

An example of the connection is displayed below.
