Using the endplate - beam/beam web steel connection type, you can connect a beam to a beam web with either a bolted or a welded connection.
Allowable elements:
- Main beam
Straight profiles: all sections
- Secondary beam
Straight profiles: all sections
Location of elements:
- Allowable angle in the plane of the secondary beam web: 0
- Allowable angle in the plane of the secondary beam flanges: 0

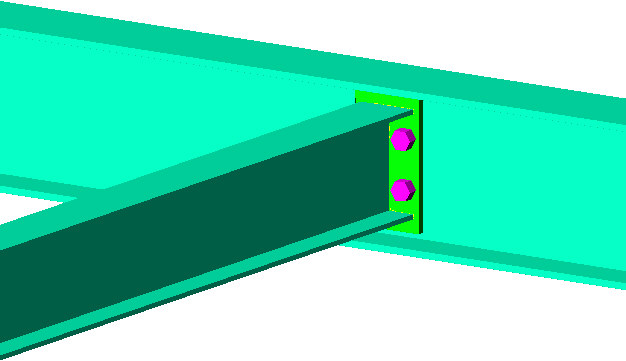

An example of the connection is displayed below.
